OVERVIEW
The Standard for Aerator Performance.
For more than half a century, the EcoJet™ aerator design has provided proven results for municipal and industrial markets throughout the world. With ultimate versatility, no other mechanical aerator is more rugged or more efficient.
The EcoJet™ offers unparalleled performance and superior reliability, low operating costs, and remarkable resistance to environmental conditions that can cause natural wear and damage.
Typical wastewater treatment applications:
- SBRs
- Cooling
- Post aeration
- Aerated lagoons
- Activated sludge
- Equalization basins
The result: Effective wastewater treatment.
Providing powerful pumping action, the EcoJet™ aerator transfers oxygen by breaking up wastewater into a spray of particles. This action creates more surface area for atmospheric pressure to drive oxygen into the wastewater. At the same time, the oxygen-enriched water is dispersed and mixed. The entire process offers more efficient wastewater treatment for municipalities and industrial applications.
DOWNLOAD ECOJET™ BROCHURE DOWNLOAD ECOJET™ THM Reduction Sellsheet

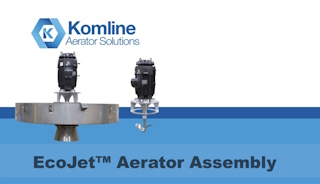

COMPONENTS
Ultimate wastewater treatment equipment designs.
Specifically designed for optimum efficacy, the EcoJet™ aerator design meets the most demanding operational requirements. The high-speed aerator provides ultimate versatility with modular units that can easily be added, repositioned or upgraded, allowing for greater adaptability and flexibility to maintain efficiencies throughout changing conditions.
Major features and components.
1. Proprietary Motor
- Totally enclosed motor, fan-cooled
- Heavy gauge cast iron fan shield
- Class F insulation
- Service factor of 1.15, optionally up 1.25
- Standard or premium efficient available
- Double-row bearings on drive end
- Heavy-duty L-10, 100,000-hour bearings
- Dynamically balanced and vibration tested
- Designed to meet the most demanding operational requirements
2. Motor Junction Box
- Opening in motor housing for winding leads is completely potted with epoxy filler
3. Motor Shaft
- One-piece continuous shaft from upper bearings to the propeller
- 17-4 PH stainless steel in the 1150°F heat-treated condition
- 135,000 PSI minimum yield strength, 35 % stronger than competition
- Largest diameter shaft
- Threaded and keyed on drive end for simple propeller installation
4. Labyrinth Seal Guard
- Positioned below the bottom motor bearing to prevent moisture from migrating up the shaft into the lower bearing
5. Discharge Cone
- Massive monolithic casting, heavier than competition
- Large integral webs for rigid stability and increased lateral strength
- Designed for minimum head loss
- 304 stainless steel or cast steel epoxy-coated
- Provides for lowest vibration levels
- Produces maximum diffusion of water particles
- 100% contact with the volute, which distributes both static and dynamic loads
6. Deflector Bearing
- Shaft runs free under normal operating conditions
- Provides support only when under load
7. Float
- Largest one-piece float available
- Engineered to provide stability and better buoyancy
- Fiberglass reinforced polyester (FRP), or
- 14-gauge, 304L or 316L stainless steel
- Filled with closed-cell polyurethane foam that adds structural stability and prevents the possibility of sinking if damage occurs to the float exterior
8. Debris Deflector
- Machined for smooth fluid passage over the surface
- Material: Delrin® – An Industry-Leading, High-Performance Acetal Resin made by DuPont™
- Attached with three recessed, stainless steel set screws
- Double engagement provides an extra measure of preventing water migration up the shaft
9. Propeller and Key
- Maintenance friendly propeller exchange with keyed design and threaded shaft
- Keyed to mate to motor shaft in proper position
- Secured to shaft by stainless steel locking nut
- Precision investment casting
- 316L or 15-5 stainless steel
- Dynamically balanced
- Anti-fouling, non-cavitating for greater operational efficiency
10. Locking Nut
- Stainless steel
- Firmly and securely locks the propeller to the shaft
- Just two tools required to install or remove the propeller 11 Volute
- 304L or 316L stainless steel
- All sizes have bottom flange for simple bolt-on attachment of the standard intake cone or optional antierosion assembly or draft tube
- Gussets at top and bottom flanges add strength
11. Volute
- 304L/316L stainless steel
- All sizes have bottom flange for simple bolt-on attachment of the standard intake cone or optional antierosion assembly or draft tube
- Gussets at top and bottom flanges add strength
12. Intake Cone
- 304L stainless steel
- Hydraulically designed for proper loading on propeller
- Sufficiently sturdy to support assembled aerator on hard, flat surface
- (Optional) Draft Tube for deep water depth application
13. Anti erosion Assembly
- (Optional) for low-water depth application
MATERIALS
Aerator construction materials that meet your requirements.
When it comes to design, engineering, versatility and performance, the EcoJet™ aerator meets and exceeds the demands and standards of industrial and municipal wastewater treatment. Offering a variety of standard aerator models and custom material combinations, the EcoJet™ aerator will help ensure maximum return on investment, cost-effective operations and efficient results.
SSS Series
- Motor Shaft – One-piece 17-4 PH stainless steel
- Propeller – 316L or 15-5 stainless steel, dynamically balanced
- Discharge Cone – 304 stainless steel, monolithic casting
- Volute – 304L stainless steel
- Intake Cone – 304L stainless steel
- Float – 14-gauge, 304L stainless steel shell filled with closed-cell polyurethane foam
CSS Series
- Motor Shaft – One-piece 17-4 PH stainless steel
- Propeller – 316L or 15-5 stainless steel, dynamically balanced
- Discharge Cone – Cast steel, monolithic casting, epoxy coated
- Volute – 304L stainless steel
- Intake Cone – 304 stainless steel
- Float – 14-gauge, 304L stainless steel shell filled with closed-cell polyurethane foam
SFG Series
- Motor Shaft – One-piece 17-4 PH stainless steel
- Propeller – 316L or 15-5 stainless steel, dynamically balanced
- Discharge Cone – 304 stainless steel, monolithic casting
- Volute – 304L stainless steel
- Intake Cone – 304L stainless steel
- Float – Fiberglass-reinforced polyester shell filled with closed-cell polyurethane foam
CFG Series
- Motor Shaft – One-piece 17-4 PH stainless steel
- Propeller – 316L or 15-5 stainless steel, dynamically balanced
- Discharge Cone – Cast steel, monolithic casting, epoxy coated
- Volute – 304L stainless steel
- Intake Cone – 304L stainless steel
- Float – Fiberglass-reinforced polyester shell filled with closed-cell polyurethane foam
Special Materials
For applications that require special materials, such as 316, 316L or other materials, please contact us or request a quote for more information.
MODELS
Better Materials. Better Processing.
From municipal to industrial operations, Aerator Solutions provides EcoJet™ aerators in a variety of models, specifically designed for optimum efficiencies. Review the typical surface aerator application characteristics and compare the differences between specific models, then contact us or request a quote.
- Application characteristics
- Stainless Steel Float series (SSS and CSS)
- Fiberglass Float series (SFG and CFG)
- EcoSaver series (ES)
Application Characteristics: Choose the right aerator for peerless results.
No matter if you’re processing effluents from municipal wastewater, pulp and paper, food and beverages or petrochemicals, EcoJet™ aerators are designed to specifically meet your efficiency and regulatory requirements. Review the typical surface aerator application characteristics below to determine the EcoJet™ model that’s right for your operations. Then contact us or request a quote.
1800 RPM
| Model | HP | RPM | IMP | DCM | DOD | Depth |
|---|---|---|---|---|---|---|
| A2 | 2 | 1800 | 9 | 28 | 95 | 7 |
| A3 | 3 | 1800 | 18 | 40 | 145 | 8 |
| A5 | 5 | 1800 | 20 | 45 | 150 | 8 |
| A5 DS | 5/2.2 | 1800/1200 | 31 | 103 | 8 | |
| A7 | 7.5 | 1800 | 21 | 50 | 160 | 9 |
| A7 DS | 7.5/3.3 | 1800/1200 | 34 | 111 | 9 | |
| A10 | 10 | 1800 | 23 | 55 | 180 | 10 |
| A10 DS | 10/4.4 | 1800/1200 | 35 | 97 | 10 | |
| A15 | 15 | 1800 | 25 | 64 | 214 | 10 |
| A15 DS | 15/6.6 | 1800/1200 | 42 | 137 | 10 |
1200 RPM
| Model | HP | RPM | IMP | DCM | DOD | Depth |
|---|---|---|---|---|---|---|
| A20 | 20 | 1200 | 28 | 76 | 265 | 10 |
| A20 DS | 20/11.2 | 1200/900 | 62 | 201 | 10 | |
| A25 | 25 | 1200 | 30 | 85 | 295 | 10 |
| A25 DS | 25/14.0 | 1200/900 | 70 | 222 | 10 | |
| A30 | 30 | 1200 | 32 | 93 | 310 | 10 |
| A30 DS | 30/16.8 | 1200/900 | 75 | 229 | 10 | |
| A40 | 40 | 1200 | 33 | 107 | 330 | 11 |
| A40 DS | 40/22.5 | 1200/900 | 86 | 275 | 11 | |
| A50 | 50 | 1200 | 34 | 111 | 360 | 12 |
| A50 DS | 50/28.1 | 1200/900 | 89 | 278 | 12 | |
| A60 60 | 60 | 1200 | 35 | 122 | 365 | 12 |
| A60 DS | 60/33.7 | 1200/900 | 96 | 295 | 12 | |
| A75 | 75 | 1200 | 36 | 137 | 440 | 12 |
| 7511 DS | 75/42.2 | 1200/900 | 109 | 322 | 12 |
900 RPM
| Model | HP | RPM | IMP | DCM | DOD | Depth |
|---|---|---|---|---|---|---|
| A100 | 100 | 900 | 40 | 155 | 400 | 15 |
| A100 DS | 100/69.4 | 900/750 | 120 | 285 | 15 |
Legend:
- Highlighted areas indicate dual-speed aerators
- IMP – Impingement diameter in feet (white water)
- DCM – Diameter of complete mix in feet
- DOD – Diameter of complete oxygen dispersion in feet
- DEPTH – Nominal operating depth where IMP, DCM and DOD hold true
Stainless steel EcoJet™ aerators.
Built to withstand the toughest conditions, the SSS and CSS stainless steel EcoJet™ aerators are available in three different models for optimum efficiencies for your operations.
| Model | HP | RPM | A | B | C | D | Shaft | Weight |
|---|---|---|---|---|---|---|---|---|
| A2 | 2 | 1800 | 40.00 | 7.0 | 47.0 | 15.0 | 1.375 | 350 |
| A3 | 3 | 1800 | 44.13 | 11.0 | 60.0 | 15.0 | 1.375 | 550 |
| A5 | 5 | 1800 | 44.13 | 11.0 | 60.0 | 15.0 | 1.375 | 550 |
| A5 DS | 5/2.2 | 1800/1200 | 44.13 | 11.0 | 60.0 | 15.0 | 1.375 | 550 |
| A7 | 7.5 | 1800 | 46.63 | 11.0 | 60.0 | 15.0 | 1.750 | 650 |
| A7 DS | 7.5/3.3 | 1800/1200 | 49.13 | 11.0 | 60.0 | 15.0 | 1.750 | 650 |
| A10 | 10 | 1800 | 51.69 | 12.0 | 71.0 | 19.0 | 1.750 | 975 |
| A10 DS | 10/4.4 | 1800/1200 | 55.63 | 12.0 | 71.0 | 19.0 | 1.750 | 975 |
| A15 | 15 | 1800 | 55.63 | 12.0 | 71.0 | 19.0 | 1.750 | 1,000 |
| A15 DS | 15/6.6 | 1800/1200 | 59.56 | 12.0 | 71.0 | 19.0 | 1.750 | 1,000 |
1200 RPM Stainless Steel Floats
| Model | HP | RPM | A | B | C | D | Shaft | Weight |
|---|---|---|---|---|---|---|---|---|
| A20 | 20 | 1200 | 67.94 | 14.0 | 84.0 | 23.00 | 2.125 | 1,350 |
| A20 DS | 20/11.2 | 1200/900 | 68.82 | 14.0 | 84.0 | 23.00 | 2.125 | 1,350 |
| A25 | 25 | 1200 | 68.82 | 14.0 | 84.0 | 23.00 | 2.125 | 1,400 |
| A25 DS | 25/14.0 | 1200/900 | 69.70 | 14.0 | 84.0 | 23.00 | 2.125 | 1,400 |
| A30 | 30 | 1200 | 86.94 | 16.0 | 96.0 | 27.75 | 2.245 | 1,900 |
| A30 DS | 30/16.8 | 1200/900 | 90.31 | 16.0 | 96.0 | 27.75 | 2.245 | 1,900 |
| A40 | 40 | 1200 | 90.31 | 16.0 | 96.0 | 27.75 | 2.900 | 1.975 |
| A40 DS | 40/22.5 | 1200/900 | 93.70 | 16.0 | 96.0 | 27.75 | 2.900 | 1.975 |
| A51 | 50 | 1200 | 90.31 | 16.0 | 96.0 | 27.75 | 2.900 | 2,050 |
| A51 DS | 50/28.1 | 1200/900 | 93.70 | 16.0 | 96.0 | 27.75 | 2.900 | 2,100 |
| A50 | 50 | 1200 | 101.06 | 16.0 | 116.0 | 34.25 | 2.900 | 2,900 |
| A50 DS | 50/28.1 | 1200/900 | 102.81 | 17.0 | 116.0 | 34.25 | 2.900 | 2,975 |
| A60 | 60 | 1200 | 102.81 | 16.0 | 116.0 | 34.25 | 2.900 | 3,100 |
| A60 DS | 60/33.7 | 1200/900 | 102.81 | 17.0 | 116.0 | 34.25 | 2.900 | 3,200 |
| A75 | 75 | 1200 | 102.81 | 16.0 | 116.0 | 34.25 | 2.900 | 3,150 |
| A75 DS | 75/42.2 | 1200/900 | 104.56 | 17.0 | 116.0 | 34.25 | 2.900 | 3,250 |
900 RPM Stainless Steel Floats
| Model | HP | RPM | A | B | C | D | Shaft | Weight |
|---|---|---|---|---|---|---|---|---|
| A100 | 100 | 900 | 120.0 | 17.0 | 131.0 | 45.0 | 3.930 | 4,700 |
| A100 DS | 100/69.4 | 900/750 | 124.00 | 19.0 | 131.0 | 45.0 | 3.930 | 4.950 |
Legend:
- A is IMP – Impingement diameter in feet (white water)
- B is DCM – Diameter of complete mix in feet
- C is DOD – Diameter of complete oxygen dispersion in feet
- D is DEPTH – Nominal operating depth where IMP, DCM and DOD hold true
- Highlighted areas indicate dual-speed aerators
- Shaft – Shaft diameter
- All dimensions in inches
- Weight – Approximate shipping weight in pounds
EcoJet™ Aerator Fiberglass Float Series
Designed for wastewater treatment applications in corrosive environments, fiberglass EcoJet™ aerators provide unparalleled protection. The SFG and CFG EcoJet™ aerators are available in three different models.
| Model | HP | RPM | A | B | C | D | Shaft | Weight |
|---|---|---|---|---|---|---|---|---|
| A2 | 2 | 1800 | 40.00 | 7.0 | 47.0 | 15.0 | 1.375 | 350 |
| A3 | 3 | 1800 | 44.13 | 11.0 | 64.5 | 15.0 | 1.375 | 550 |
| A5 | 5 | 1800 | 44.13 | 11.0 | 64.5 | 15.0 | 1.375 | 550 |
| A5 DS | 5/2.2 | 1800/1200 | 44.13 | 11.0 | 64.5 | 15.0 | 1.375 | 550 |
| A7 | 7.5 | 1800 | 46.63 | 11.0 | 64.5 | 15.0 | 1.750 | 650 |
| A7 DS | 7.5/3.3 | 1800/1200 | 49.13 | 11.0 | 64.5 | 15.0 | 1.750 | 650 |
| A10 | 10 | 1800 | 51.69 | 12.0 | 71.5 | 19.0 | 1.750 | 925 |
| 10 DS | 10/4.4 | 1800/1200 | 55.63 | 12.0 | 71.5 | 19.0 | 1.750 | 925 |
| A15 | 15 | 1800 | 55.63 | 12.0 | 71.5 | 19.0 | 1.750 | 950 |
| A15 DS | 15/6.6 | 1800/1200 | 59.56 | 12.0 | 71.5 | 19.0 | 1.750 | 950 |
1200 RPM Fiberglass Float
| Model | HP | RPM | A | B | C | D | Shaft | Weight |
|---|---|---|---|---|---|---|---|---|
| A20 | 20 | 1200 | 67.94 | 14.0 | 84.5 | 23.00 | 2.125 | 1,150 |
| A20 DS | 20/11.2 | 1200/900 | 68.82 | 14.0 | 84.5 | 23.00 | 2.125 | 1,150 |
| A25 | 25 | 1200 | 68.82 | 14.0 | 84.5 | 23.00 | 2.125 | 1,200 |
| A25 DS | 25/14.0 | 1200/900 | 69.70 | 14.0 | 84.5 | 23.00 | 2.125 | 1,200 |
| A30 | 30 | 1200 | 86.94 | 16.5 | 96.0 | 27.75 | 2.245 | 1,900 |
| A30 DS | 30/16.8 | 1200/900 | 90.31 | 16.5 | 96.0 | 27.75 | 2.245 | 1,900 |
| A40 | 40 | 1200 | 90.31 | 16.5 | 96.0 | 27.75 | 2.900 | 1.950 |
| A40 DS | 40/22.5 | 1200/900 | 93.70 | 16.5 | 96.0 | 27.75 | 2.900 | 1.950 |
| A51 | 50 | 1200 | 90.31 | 16.5 | 96.0 | 27.75 | 2.900 | 2,000 |
| A51 DS | 50/28.1 | 1200/900 | 93.70 | 16.5 | 96.0 | 27.75 | 2.900 | 2,050 |
| A50 | 5 | 1200 | 101.06 | 16.5 | 116.0 | 34.25 | 2.900 | 2,400 |
| A50 DS | 50/28.1 | 1200/900 | 102.81 | 16.5 | 116.0 | 34.25 | 2.900 | 2,500 |
| A60 | 60 | 1200 | 102.81 | 16.5 | 116.0 | 34.25 | 2.900 | 2,800 |
| A60 DS | 60/33.7 | 1200/900 | 102.81 | 16.5 | 116.0 | 34.25 | 2.900 | 2,900 |
| A75 | 75 | 1200 | 102.81 | 16.5 | 116.0 | 34.25 | 2.900 | 2,850 |
| A75 DS | 75/42.2 | 1200/900 | 104.56 | 16.5 | 116.0 | 34.25 | 2.900 | 2,950 |
900 RPM Fiberglass Float
| Model | HP | RPM | A | B | C | D | Shaft | Weight |
|---|---|---|---|---|---|---|---|---|
| A100 | 100 | 900 | 120.00 | 20.0 | 116.0 | 45.0 | 3.930 | 4,450 |
| A100 DS | 100/69.4 | 900/750 | 124.00 | 23.0 | 116.0 | 45.0 | 3.930 | 4.650 |
Legend:
- A is IMP – Impingement diameter in feet (white water)
- B is DCM – Diameter of complete mix in feet
- C is DOD – Diameter of complete oxygen dispersion in feet
- D is DEPTH – Nominal operating depth where IMP, DCM and DOD hold true
- Highlighted areas indicate dual-speed aerators
- Shaft – Shaft diameter
- All dimensions in inches
- Weight – Approximate shipping weight in pounds
EcoSaver™ ES Series aerators.
Looking for ROI? Look no further than the EcoSaver ES aerator. Specifically engineered to make the best use of your budget, the EcoSaver reduces energy costs to provide greater overall savings without sacrificing efficient wastewater treatment.
Offering a motor efficiency rating of 95% compared to the standard 91.7%, municipalities and industrial wastewater operations have the opportunity to increase efficiencies and profitability.
Is the EcoSaver right for my operations?
Numerous factors come into play when it comes to choosing the right aerator. The EcoSaver is no exception. Running hours, cost of electricity, payback period, tax rate, cost of capital and service life are all aspects to consider when evaluating the rationale for purchasing an EcoSaver.
MOTORS
Robust motors designed for rugged environments.
One of the many reasons Aerator Solutions is the leading aerator solution for the wastewater industry, is our proprietary motor design brings ultimate efficiencies to your operations. The EcoJet™ aerator IEEE 841 TEFC motors are specifically suited for pulp and paper mills requiring severe-duty, long-life motors.
EcoJet™ aerator TEFC Motor standard features:
- Class F insulation
- One piece 17-4PH stainless steel shaft
- Rated severe chemical duty
- Totally enclosed fan-cooled
- Potted junction box for motor leads
- 135,000 psi yield strength on motor shaft
- Available in all OSHA colors
Optional features:
- Dual speed
- Space heaters
- Explosion proof
- Tnemec special paints
- Thermal overload protection
- EcoSaver™ energy efficient upgrade
- EcoSaver™ 5-year, no maintenance motor
What’s more, when you work with one of our experts, we can help you determine typical cost savings. We’ll simply determine the number of motors on site, number of operational hours for each unit, kilowatt-hour cost, and then provide a calculation showing the estimated savings typically garnered from EcoLast™ motors.
Technical details:
- 1.25 service factor
- InproSeal bearing isolators at both ends
- Bearing protection meets IP56
- Rubber lead separator between terminal box and frame
- Epoxy paint system exceeds 250 hours salt fog test
- Interior surfaces are epoxy coated
- Non-sparking fan
- NPT threaded terminal box
- Seamless copper lead lugs
- Seamless stainless steel grease extension tubes
- Class F insulation (Impregnation resin and magnet wire are Class H)
- All frames with re-greasable ball bearings
CONTROLS
Proven results with optimal aerator controls.
The EcoJet™ High-speed aerator offers motor and control options for optimum customization.
Motor options:
- Premium efficient
- Space Heaters
- Dual speed
- Thermal overload protection
- Explosion-proof construction
Control panels
- NEMA compliant enclosures available for manual, semi-automatic or automatic operation
- Standard control panel consists of across-the-line starters, pushbutton start/stop switches, and main disconnect safety lever switch
- Other special enclosures such as timers, pilot lights, alarm horns, or elapsed time meters, are available
BETTER THAN NEW™
Low on capital investment. High on efficiencies.
There’s no reason to sacrifice efficiencies just because a brand new aerator or mixer isn’t in the budget. With options for purchasing a refurbished system or reconditioned components, Aerator Solutions can make what was old seem new again. And help give your operations a boost without breaking the budget.
Better Than New™ Equipment
Aerator Solutions can recondition the motor module by refurbishing the discharge cone or motor base from our own, and any competitors’ aerator or mixer. We will recondition the components, and add a new motor, shaft parts, and propeller to make a Better than New motor module.
- Dynamically balanced motor module to ensure long life of unit
- New float, intake cone, or anti-erosion assembly provided, if needed
- Significant savings will result, depending on unit size
EcoFurbished™ Equipment
EcoFurbished™ aerators and mixers are systems from Aerator Solutions that were previously used as rentals or other applications. Re-built to our strict standards, our EcoFurbished solutions are available for shipment immediately, based on current inventory.
- Significant savings compared to new equipment
- 1-year mechanical warranty
