The Smarter Mixing Solution.

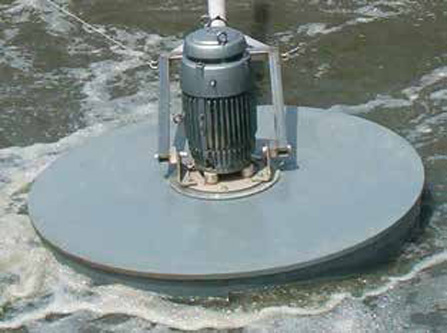

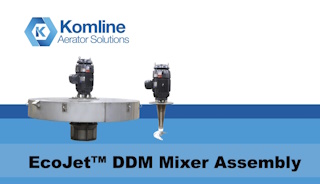

No matter if you’re in the pulp and paper industry, or managing municipal wastewater, the EcoJet™ DDM offers a variety of options to meet your compliance requirements. Offering a vast range of horsepower and materials to bring versatility and performance to your operations.

Design Features Motor

• Totally enclosed, fan-cooled
• Rated severe chemical duty
• Class F insulation
• Double-row bearings on drive end
• Heavy-duty L-10, 100,000 hour bearings
• Heavy-duty seals
• Largest diameter shafts
• Stainless steel hardware
• Service factor of 1.15
• Designed to meet demanding operational requirements

Motor Module

• One-piece 17-4 PH stainless steel shaft
• Shaft threaded and keyed on drive end
• 135,000-PSI shaft yield strength
• Dynamically balanced
• Hydraulically balanced
• Optimized motor module design minimizes vibration

Motor Base Assembly

• 304L stainless steel or epoxy coated steel
• Interlocking debris deflection in lower portion of assembly
• Alignment of motor controlled by machined index
• Double engagement of debris deflector provides protection of motor windings and bearings when motor is reversed
• Deflector bearing located at end of motor base
• Shaft runs free under normal operating conditions
• Proprietary seal design

Propeller

• Precision investment casting
• 316L or 15-5 stainless steel
• Dynamically balanced
• Keyed to mate to motor shaft
• Secured by stainless steel locking nut
• Simple installation or removal
• Anti-fouling, non-cavitating for greater operational efficiency

Float

• Largest one-piece floats available
• Fiberglass reinforced plastic or 14- gauge, 304L stainless steel
• Engineered to provide stability
• Filled with closed-cell polyurethane foam adds stability and prevents possibility of sinking if damage occurs to float exterior

Discharge Volute Assembly

• 304L stainless steel
• Reinforced with gussets to maintain dimensional integrity
• Volute is transitioned to retain more velocity of fluid for improved performance
• Advanced hydraulic features maximize mixer efficiency

Choices, choices, choices.

No matter if you’re in the pulp and paper industry, or managing municipal wastewater, the EcoJet™ DDM offers a variety of options to meet your compliance requirements. Offering a vast range of horsepower and materials to bring versatility and performance to your operations.

Low on capital investment. High on efficiencies.

There’s no reason to sacrifice efficiencies just because a brand new aerator or mixer isn’t in the budget. With options for purchasing a refurbished system or reconditioned components, Aerator Solutions can make what was old seem new again. And help give your operations a boost without breaking the budget.

Better Than New^™ Equipment

Aerator Solutions can recondition the motor module by refurbishing the discharge cone or motor base from our own, and any competitors’ aerator or mixer. We will recondition the components, and add a new motor, shaft parts, and propeller to make a Better than New motor module.

• Dynamically balanced motor module to ensure long life of unit
• New float, intake cone, or anti-erosion assembly provided, if needed
• Significant savings will result, depending on unit size

EcoFurbished^™ Equipment

EcoFurbished^™ aerators and mixers are systems from Aerator Solutions that were previously used as rentals or other applications. Re-built to our strict standards, our EcoFurbished solutions are available for shipment immediately, based on current inventory.

• Significant savings compared to new equipment
• 1-year mechanical warranty
